Product Details
Product introduce

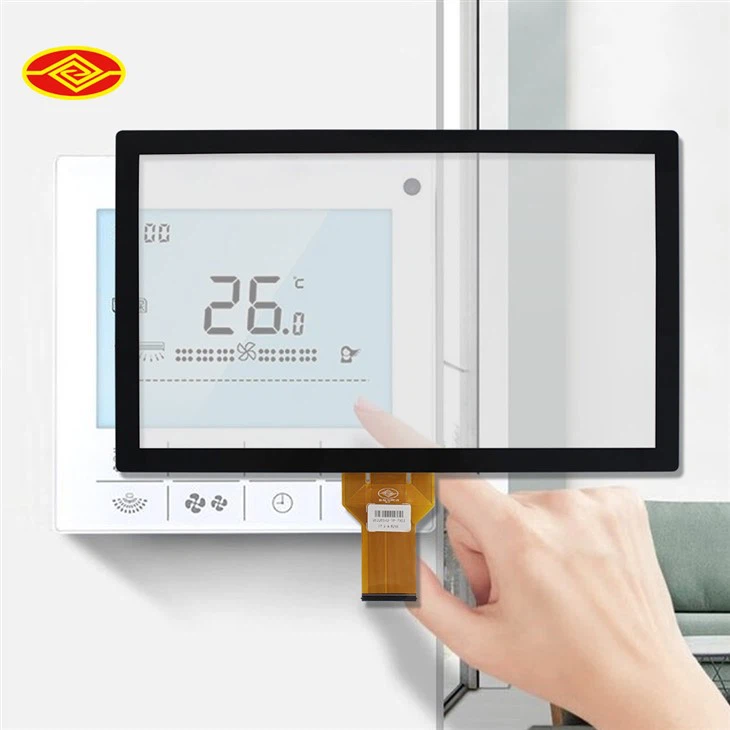

Our touch screens offer a high degree of customization. The cover glass can be tailored in terms of shape, size, edge treatments, and cut-outs, with options for silk-printed logos. Available materials include Gorilla Glass, Tempered Glass, and PMMA, with surface treatments such as mirror, Anti-Glare (AG), Anti-Reflective (AR), and Anti-Fingerprint (AF). The sensor can be made from glass or film structures, with customizable FPC designs. It is compatible with ICs like EETI, ILITEK, SIS, Cypress, and more, supporting I2C, USB, and RS232 interfaces to meet diverse application requirements.
Core Customization Capabilities
Special-shaped Glass Cutting
Supports customization of non-standard shapes such as circular, arc-shaped, and polygonal (minimum radius of curvature R20mm), adapting to the aesthetic designs of creative retail devices.
Can customize 2.5D/3D curved glass to enhance touch-edge feel and visual appeal.
Flexible Size Adaptation
Covers mainstream sizes from 15.6 to 67 inches, compatible with devices such as smart shelves, self-checkout machines, and interactive advertising screens.
Thickness options (1.1mm~5mm) to meet embedded or surface-mounted installation requirements.
Custom Surface Treatment
AG/AR/AF Coatings: Anti-glare (reflectance ≤2%), anti-fingerprint, and oleophobic/hydrophobic properties, suitable for high-traffic environments.
Antibacterial Glass: Optional silver ion coating, passing the ISO 22196 antibacterial test, ideal for food retail and medical stores.
product parameters
|
Type |
Projective Capacitive |
|
|
Connection |
COB |
|
|
Screen Diagonal |
17.3 [16:9] Inch |
|
|
Structures |
G+G |
|
|
Outline Dimension |
251.21(W)*418.29(L)±0.3 mm |
|
|
View Area |
215.21(W)*382.29(L)±0.3 mm |
|
|
Active Area |
216.21(W)*383.29(L)±0.3 mm |
|
|
Sensor Thickness |
0.7±0.05 mm |
|
|
Cover Thickness |
2.0±0.2 mm |
|
|
Total Thickness |
2.9±0.2 mm |
|
|
Chamfer |
R5 mm |
|
|
Tail Length |
123.11 mm |
|
|
Logo |
NO |
|
|
Printing |
Black |
|
|
Special Design |
NO |
|
| Connection | COB | |
| Screen Diagonal | 15.6 [16:9] Inch | |
| Structures | G+G | |
| Customized Function |
AR/AF/AG, Waterproof, Glove / Stylus Touch and so on |
|
|
Touch Duration |
100000 Hours |
|
|
Touch Response Time |
5ms - 12ms |
|
|
3-year free warranty |
||
| Touch Controller Selectable |
Focaltech | |
| Goodix | ||
| EETI | ||
| ILITEK | ||
|
Operation Environment |
Operation Temperature: 0°C ~ 55°C; |
|
| Storage Temperature: -25°C ~85°C | ||
| Operation Humidity:10% ~90% RH, Relative Humidity | ||
| Storage Humidity: 10% ~ 90% RH, Relative Humidity | ||
Advantages of the product
Customization: Highly flexible in terms of shape, size, materials (Gorilla Glass, Tempered Glass, PMMA), and treatments (AG, AR, AF), allowing for tailored solutions to meet specific customer needs.
Durability: Use of premium materials like Gorilla Glass and Tempered Glass enhances durability, scratch resistance, and protection against damage in demanding environments.
Enhanced Visual Clarity: Anti-Glare (AG) and Anti-Reflective (AR) coatings improve screen visibility in different lighting conditions, making it ideal for outdoor and industrial use.
Anti-Fingerprint (AF) Coating: Reduces smudges and fingerprints for a cleaner and more responsive user experience.
Compatibility: Supports a wide range of ICs (EETI, ILITEK, Cypress, etc.) and interfaces (I2C, USB, RS232), ensuring seamless integration into various systems and devices.
Versatility: Suitable for diverse applications, including industrial automation, medical equipment, outdoor kiosks, and more, due to its customizable design and robust performance.
FPC Customization: Customizable Flexible Printed Circuit (FPC) designs provide added flexibility for integration into complex devices
application
Industrial-Grade Touch Panel Widely Used In Harsh Environments: Seamless Integration For Factory Automation, Outdoor Kiosks, Medical Devices, Smart Home Control, And Automotive Systems With IP65 Protection, -40℃~85℃ Durability, And 10-Point Multi-Touch Precision.
who choose us?
As the first factory in China mainland specializing in industrial touch solutions for 13 years, we have full range of products from Touch Panel & Bonded Touch Display & Touch Monitor & Panel PC from 5'' to 65'', with 100% design & production in house, Low MOQ ,3 years warranty.
one-stop solution
Low MOQ For Customization
professional team
Introduction to Product Applications in Real-World Scenarios
Introduction to Application Features and Functions of Our Product in Various Scenarios
Industrial Control
Robust Multi-Protocol Touch Panel For Harsh Industrial Environments: IP65, -40℃~85℃ Wide-Temperature, And Seamless PLC Integration
Smart Home
Sunlight-Readable Outdoor Touch Solution: IP67, 1500Nits Anti-Glare, And IK08 Vandal-Proof Design For All-Weather Reliability
Automotive Electronics
Ultra-Thin Smart Home Touch Interface: 2.8mm Curved Glass, Zigbee/Bluetooth 5.2, And Multi-User Gesture Control
Outdoor Terminals
Automotive-Grade Touch Display: ISO 16750 & ASIL-B Certified, CAN/LVDS Interfaces, And Extreme Temperature Stability
Special Treatment
Support AG/AR/AF Glass (Anti-Glare, Anti-Reflective,Anti-Fingerprint)
Anti-glare(AG)
Scatter Light: Roughens the screen surface (via chemical etching, particle spraying) to diffuse incident light, eliminating glare from strong light (e.g., direct sunlight, indoor reflections), reducing visual fatigue and "mirror-like reflections".
Enhance Strong-Light Visibility: Critical for outdoor kiosks, POS terminals, industrial touchscreens, ensuring clear content under direct light (as in "sunlight-readable touchscreen" tech).
Protective Compatibility: Integrates with wear-resistant, chemical-resistant layers, boosting durability for harsh environments (e.g., dusty factories, military equipment touchscreens).

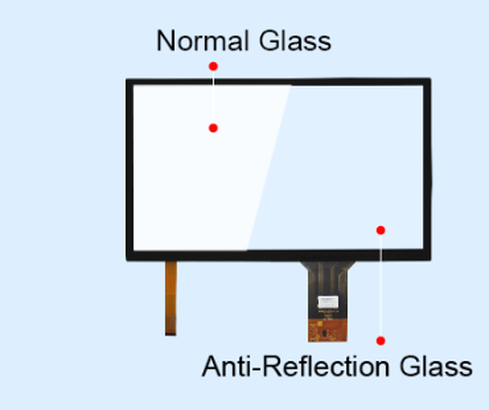

Anti- reflection(AR)
Reduce Reflection: Utilizes optical coating technologies (e.g., vacuum electroplating, magnetron sputtering) to modify light propagation, lower surface reflectance (≤0.5%) and increase transmittance (up to >99%), minimizing reflection interference in high-brightness environments (e.g., sunlight, indoor strong light), enhancing screen readability outdoors.
Optimize Display: Reduces reflection-induced content obstruction, delivering clearer visuals and truer colors. Ideal for outdoor displays, in-vehicle dashboards, high-end mobile/tablet touchscreens, improving visual experience.
Specialized Integration: Combines with conductive layers (e.g., ITO) for integrated conductivity and anti-reflection (e.g., Wanshun New Material's conductive anti-reflective composite film), suitable for AR glasses, foldable screens, etc., balancing light transmittance and touch sensitivity.
Anti- fingerprint(AF)
Hydrophobic/Oleophobic: Leverages the "lotus leaf principle" with nanochemical coatings, repelling water, oil, fingerprints, and stains (e.g., "special grease protection tech minimizes residue, as in reference content).
Easy Cleaning: Lowers stain adhesion for effortless wiping, keeping screens clean and transparent, enhancing touch comfort (especially in high-frequency touch scenarios like mobile/tablet screens).
Visual Enhancement: When combined with AR/AG (e.g., 3A cover glass, AR+AG+AF coating), it further reduces fingerprint impact on display, maintaining clarity during long-term use.
customized
We offer comprehensive customizations for touch display module solutions across multiple dimensions:
- Touch/Interface: Types (capacitive, etc.), interfaces (USB, HDMI, etc.).
- Size/Structure: Dimensions, mounting (wall/embedded), rugged materials (industrial/marine).
- Appearance: Colors, logo integration, branded packing.
- Display: Brightness (sunlight-readable/indoor), IPS/LCD/OLED, light sensors.
- Protection: Waterproof (IP65+), anti-glare/fingerprint, UV/antibacterial coatings.
- Software/Integration: OS (Android/Linux/Windows), sensor/module (5G/Wi-Fi) integration.
- Industries: Industrial, outdoor, medical, marine/aviation, gaming (14+ years expertise), backed by 30+ bonding tech patents.
