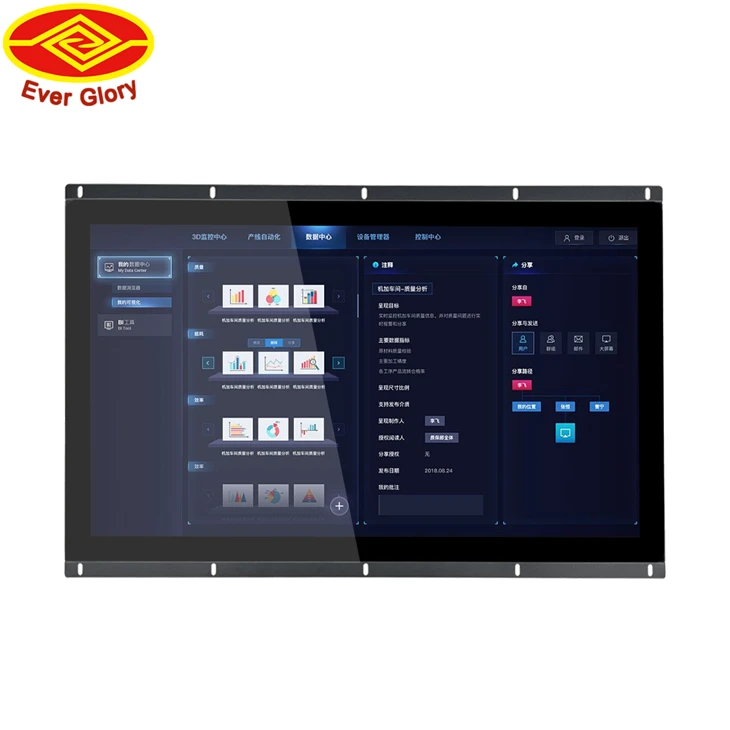

Touch Monitor 17 Inch | Industrial Capacitive Touch Screen Monitor

Specifications:

Solutions to Unresponsive Touch of Touch Monitor 17 Inch When Wearing Gloves for Industrial Touch Monitors

1.Activate the water suppression algorithm: block signals from large-area continuous conductive regions, filter false multi-point touches caused by water stains and cutting fluid liquid films, and accurately identify valid single-point pressing areas.

2.Raise the touch trigger threshold to lift the threshold for capacitive induction sensitivity and filter weak dielectric interference from dust. Meanwhile, enable the thick glove mode to amplify weakly coupled capacitive signals, enabling direct operation with thin PU gloves and thin cotton yarn gloves.

3.Enable coordinate filtering and anti-shake algorithms. Mean value filtering and outlier elimination are performed on sampled coordinates to eliminate cursor drift and jitter triggered by dust interference.

4.Thicken the ITO layer and boost the driving voltage of the driver IC to increase the transmitting-end driving power. This enables stable touch recognition through thick cotton yarn gloves, double-layer PU gloves and thin rubber gloves, allowing operators to work without removing gloves.

5.Add a steel sheet grounding layer to the FPC cable of the whole device to shield strong electromagnetic interference from machine tool motors and inverters, suppress stray electric field interference induced by dust, and eliminate coordinate offset and random jumping touch points.

Methods to Improve Explosion-Proof Performance of Touch Monitor 17 Inch in Industrial  Applications

1.High-alumina silicon secondary strengthened tempered glass is adopted with dual-sided chemical strengthening on the front surface. Its edges are processed via precision CNC chamfering and polishing, delivering outstanding resistance against impact, edge chipping and hard object scratching. With a Mohs hardness of no less than 7, it resists deep scratches from routine collisions with iron filings and tools.

2.Dual-layer chemical-resistant fluorine-based AF coating is applied. The dense adhesive base layer firmly anchors into glass pores to block acid and alkali penetration that would corrode the glass substrate. The top hydrophobic and oleophobic functional layer withstands soaking and repeated wiping with 84 chlorine-containing disinfectant, hydrogen peroxide, food-grade weak acids and bases, as well as common diluted industrial chemical solvents.

3.Narrow-bezel full lamination plus frame edge gluing is adopted between the LCD and touch layer to eliminate the intermediate air gap. An additional bead of sealing glue is applied along the outer perimeter of the laminated bezel, thoroughly preventing liquid from seeping into the interlayer through the front edge of the panel, which would otherwise cause fogging and corrosion of the ITO layer.

FAQ

1.Q: Will industrial liquids such as cutting fluid and disinfectant seep into the display and damage the internal touch structure?

A: The LCD and touch layer adopt narrow bezel full lamination with edge surrounding glue, plus an extra circle of outer sealing glue on the frame. It completely blocks liquid infiltration from the front edge, effectively preventing interlayer fogging and ITO corrosion.

2.Q: Is the front panel glass scratch-resistant enough against iron scraps and tool bumps on site?

A: We use secondary strengthened high-alumina silicon tempered glass with double-sided chemical strengthening and finely chamfered & polished edges. Its Mohs hardness reaches 7 or above, which is resistant to impact, corner chipping and hard scratching, and will not produce deep marks under daily collision with iron filings and hardware tools.

3.Q: Can the anti-fouling coating endure frequent wiping with disinfectants and chemical solvents?

A: Equipped with double-layer chemical-resistant fluorinated AF coating. The bottom adhesive layer prevents acid and alkali erosion of glass. The top functional layer can resist long-term soaking and wiping of 84 disinfectant, hydrogen peroxide, food-grade acid-base substances and conventional diluted industrial reagents.

4.Q: What causes fogging inside the screen during long-term workshop use?

A: The main reason is liquid entering the air layer between the touch panel and LCD. Our full bonding process removes the air gap entirely, and dual sealing glue structure stops edge liquid intrusion fundamentally to avoid internal fogging.

5.Q: Will the glass edge crack or chip easily after being hit?

A: The glass edges are precisely CNC chamfered and polished after secondary tempering, eliminating sharp stress points. It greatly improves anti-chipping and anti-drop performance, greatly reducing edge breakage during installation and on-site use.
