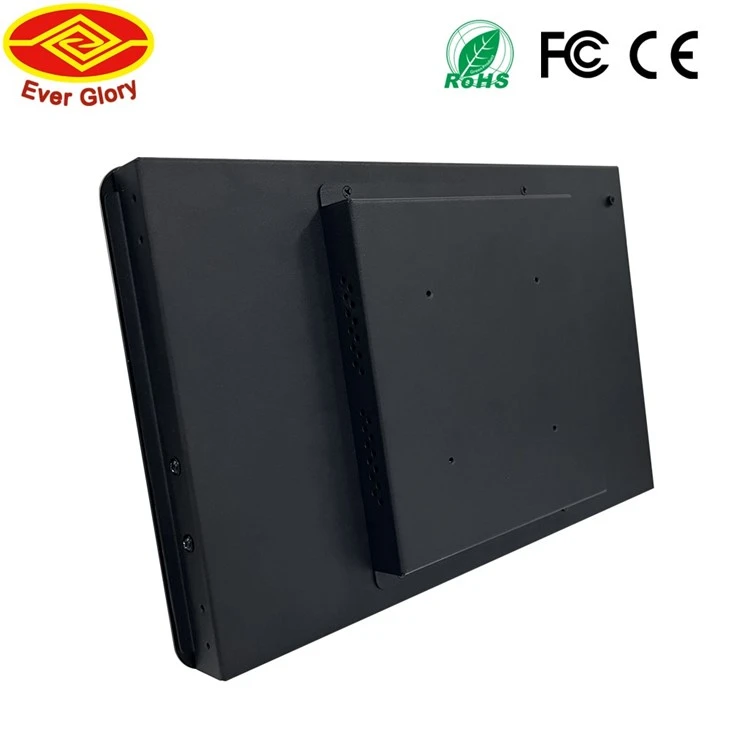

IP65 Outdoor Touch Screen Monitor | Sunlight Readable Waterproof Display

Specifications:

Solutions to Improve Poor Visibility of IP65 Outdoor Touch Screen Monitor for Outdoor Applications

1.The cover glass surface undergoes AG etching anti-glare matte treatment together with AF hydrophobic, oleophobic and anti-fingerprint coating. The microscopic concave-convex texture disperses directional specular reflection and converts it into diffuse reflection, fundamentally eliminating the white screen effect when the display is viewed head-on under intense direct light.

2.Equipped with a 1000-nit high-brightness LCD panel, it delivers vivid non-faded colors and sharply legible text even under direct sunlight. A built-in photosensitive auto-sensing chip dynamically adjusts backlight brightness in response to ambient light levels.

3.The OCA optical adhesive full lamination process is adopted to seamlessly bond the cover glass, touch layer and LCD panel, eliminate air gaps and avoid ghost images and double vision.

Solutions to Improve Touch Accuracy of IP65 Outdoor Touch Screen Monitor with Water Stains on the Screen Surface

1.The driver chip enables the water false touch filtering program: it identifies signals from scattered single water droplets and clutter from sheet-shaped water films, distinguishes the capacitance waveform of human fingers from interference waveforms generated by water, automatically blocks invalid touch signals caused by rain and fog, and prevents pop-up windows, page jumps and unintended device actions.

2.The touch ITO wiring adopts an anti-island design to reduce the area of a single conductive region, preventing misjudgment caused by a single water drop bridging electrodes. Shielding ground wires are added to edge electrodes to suppress noise interference in misty and humid environments.

3.A bottom grounded shielding ITO layer is added to the touch layer to isolate electric field interference imposed by external water on the touch sensing layer. Even when a large area of the screen is covered with water, the electric field will not be fully coupled and shielded by water, so basic touch recognition performance can be maintained.

4.The screen adopts independent sampling for each touch partition. Only the corresponding area will be disabled when local water contamination occurs, while other regions remain responsive to touch input, preventing total touch failure or system freeze of the entire display.

5.Micro-chamfered drainage channels are machined on four edges of the cover glass, allowing spilled water to flow down along the bezel and drain off the screen surface rapidly to avoid prolonged water residue. Paired with high-adhesion AF coating, it prevents water films from spreading and covering the entire panel surface.

FAQ

Q1: How does the system avoid false touches caused by rain and fog on the touchscreen?

A1: The driver chip activates the water false touch filtering program. It identifies interference signals from scattered water droplets and sheet water films, differentiates finger capacitance waveforms from water-induced noise, and automatically blocks invalid touch commands to prevent accidental pop-ups, page jumps and unintended device operations.

Q2: What structural optimization is applied to ITO wiring to prevent water-caused misoperation?

A2: Anti-island layout is adopted for touch ITO traces to shrink single conductive areas and stop signal misjudgment when a single drop connects adjacent electrodes. Shielding ground lines are added to edge electrodes to cut down electromagnetic noise in foggy environments.

Q3: What design keeps basic touch functions even when large areas of the screen are wet?

A3: A bottom grounded shielding ITO layer is integrated into the touch layer. It insulates the sensing layer from electric field interference from external water. Even with extensive water coverage, the electric field will not be completely coupled and shielded, so fundamental touch recognition is preserved.

Q4: Will partial water on the screen lead to complete touch failure of the whole display?

A4: No. The touch screen supports independent sampling by divided touch zones. Only the wetted area will be temporarily suppressed, while other zones work normally, so full-screen touch outage or crash will not happen.

Q5: How to speed up water drainage and stop water film spreading on the glass surface?

A5: Four sides of the cover glass are equipped with micro-chamfered drainage grooves to guide spilled water off the screen quickly and reduce long-term water adhesion. Combined with high-adhesion AF coating, it effectively prevents water from forming a continuous flat film across the panel.
