When it comes to the power supply requirements of a 10-inch panel PC touch screen, several factors need to be considered to ensure optimal performance and longevity. As a leading supplier of 10-inch panel PC touch screens, I have extensive experience in understanding these requirements and can provide valuable insights.
Components and Their Power Consumption
A 10-inch panel PC touch screen is composed of several key components, each with its own power consumption characteristics. The display panel itself is a significant power consumer. Modern LCD panels used in 10-inch touch screens typically consume between 5 to 10 watts, depending on the backlight technology and brightness settings. LED backlit panels are more energy - efficient compared to traditional CCFL backlit ones.
The touch screen controller is another important component. It is responsible for detecting touch inputs and translating them into digital signals. The power consumption of a touch screen controller is relatively low, usually ranging from 0.1 to 0.5 watts.
The system on a chip (SoC) or the central processing unit (CPU) is the brain of the panel PC. The power consumption of the CPU can vary greatly depending on its performance level. Low - power CPUs used in 10 - inch panel PCs may consume around 2 to 5 watts under normal operating conditions, while more powerful ones can consume up to 10 watts or more, especially when under heavy load.
Other components such as memory (RAM), storage (e.g., SSD or HDD), and wireless communication modules (Wi - Fi, Bluetooth) also contribute to the overall power consumption. Memory modules typically consume less than 1 watt, while storage devices can consume around 1 to 3 watts, depending on their type and capacity. Wireless communication modules usually consume less than 1 watt when in use.
Power Supply Voltage and Current
The power supply voltage for a 10 - inch panel PC touch screen is typically in the range of 12 to 24 volts DC. The choice of voltage depends on the design of the panel PC and the components used. A higher voltage can reduce the current flowing through the system, which can be beneficial for minimizing power losses in the wiring.
The current requirement is determined by the total power consumption of the panel PC. Using the formula (P = VI) (where (P) is power in watts, (V) is voltage in volts, and (I) is current in amperes), we can calculate the current. For example, if a 10 - inch panel PC has a total power consumption of 15 watts and is powered by a 12 - volt power supply, the current draw would be (I=\frac{P}{V}=\frac{15}{12}=1.25) amperes.
It is important to note that the power supply should be able to provide a stable voltage and sufficient current to meet the peak power requirements of the panel PC. During startup or when the CPU is under heavy load, the power consumption may increase temporarily, and the power supply should be able to handle these spikes without voltage drops.
Efficiency and Power Management
Efficiency is an important consideration when it comes to power supply. A more efficient power supply will convert a higher percentage of the input power into usable power for the panel PC, reducing wasted energy and heat generation. Switch - mode power supplies (SMPS) are commonly used in panel PCs due to their high efficiency, which can be up to 90% or more.
Power management features are also crucial for reducing power consumption. Many 10 - inch panel PCs are equipped with power - saving modes such as sleep mode and standby mode. In sleep mode, the system can reduce the power consumption of the CPU, display, and other components to a minimum while still being able to quickly resume normal operation. Standby mode consumes even less power, but it may take longer to wake up the system.
Impact of Environmental Conditions
Environmental conditions can also affect the power supply requirements of a 10 - inch panel PC touch screen. High temperatures can increase the power consumption of the components, as they need to work harder to dissipate heat. In addition, the efficiency of the power supply may decrease at high temperatures, leading to more power losses.
On the other hand, low temperatures can also have an impact. Some components, such as batteries (if the panel PC is battery - powered), may have reduced performance and capacity at low temperatures. It is important to ensure that the panel PC is operated within the recommended temperature range to maintain optimal power consumption and performance.
Comparison with Other Touch Screen Products
When comparing the power supply requirements of a 10 - inch panel PC touch screen with other touch screen products, such as the 42 inch Smart Coffee Table Touch Screen or the 12 Inch Industrial Tablets Touch Screen PC, there are significant differences.
The 42 - inch smart coffee table touch screen has a much larger display panel, which requires more power to illuminate. In addition, it may have more powerful components to support its larger size and more complex functionality, resulting in a higher overall power consumption. The power supply voltage and current requirements for this product are likely to be higher compared to a 10 - inch panel PC.
The 12 - inch industrial tablets touch screen PC, on the other hand, may have different power requirements depending on its intended use. Industrial tablets often need to be more rugged and may have additional features such as extended temperature range and shock resistance. These features can increase the power consumption, but they may also be designed with more efficient power management systems to offset the additional power requirements.
Wide Touch Screen Monitors and Power Supply

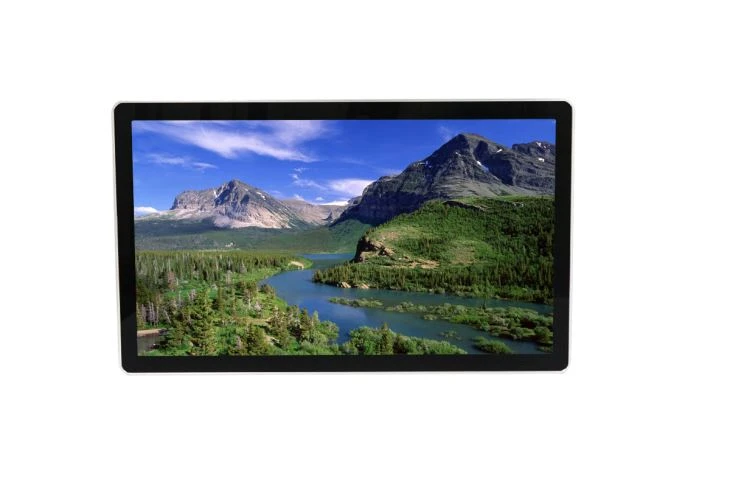

Wide touch screen monitors, like the wide touch screen monitor, also have their own unique power supply requirements. The larger screen size and potentially higher resolution of wide touch screen monitors mean that they generally consume more power than 10 - inch panel PC touch screens. The backlight of a wide touch screen monitor needs to cover a larger area, which requires more power. Additionally, if the monitor is used in a high - traffic environment such as a ticket machine, it may need to be constantly powered on, which further increases the overall power consumption.
Conclusion and Call to Action
In conclusion, understanding the power supply requirements of a 10 - inch panel PC touch screen is essential for ensuring its proper operation and longevity. By considering factors such as component power consumption, power supply voltage and current, efficiency, power management, and environmental conditions, users can make informed decisions about the power supply for their panel PCs.
As a supplier of 10 - inch panel PC touch screens, we have a wide range of products to meet different power supply requirements and application scenarios. Whether you need a low - power solution for portable devices or a high - performance panel PC for industrial applications, we can provide the right product for you.
If you are interested in purchasing 10 - inch panel PC touch screens or have any questions about power supply requirements, please feel free to contact us for a detailed consultation. We are committed to providing high - quality products and excellent customer service.
References
- "Power Electronics: Converters, Applications, and Design" by Ned Mohan, Tore M. Undeland, and William P. Robbins.
- "Microprocessor-Based System Design" by Douglas V. Hall.
