Product Detail
Standard
15.6 Inch Optical Bonding
Certification
FCC,RoHS,CE
Price
TBA
Product introduce

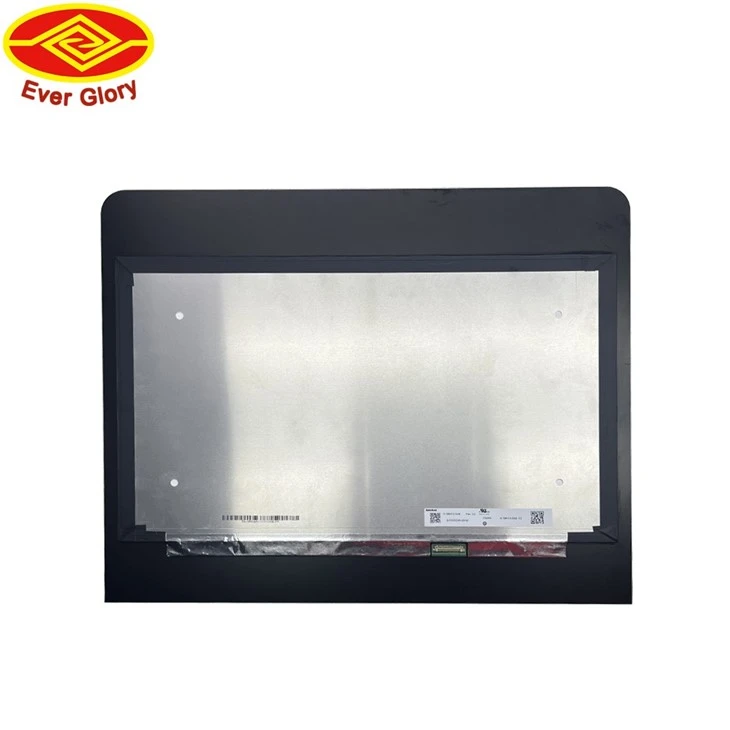

The Optical Bonding Multi Touch is a capacitive touch screen that integrates optical bonding technology with multi-touch functionality. This advanced technology combines the touch panel and the display screen seamlessly, eliminating any air gaps, thereby enhancing touch accuracy and response speed. Additionally, its multi-touch capability allows users to perform multiple operations simultaneously, greatly improving the convenience and efficiency of interactions.
product parameters
| Size | 15.6 inch |
| Product Number | EG-15.6-A-1609V1-QTCTP-A |
| Display P/N | G156HAN02.302 |
| Surface hardness | >6H |
| Waterproof | IP65 |
| Cover Outline Dimension | 380.56*229.99 mm |
| Touch Panel View Area | 344.56*193.99 mm |
| Touch Panel Active Area | 345.56*194.99 mm |
| Display Outline Dimension | 363.8*215.9 mm |
| Touch Panel Thickness | 2.9 mm |
| Display Active Area | 344.16*193.59 mm |
| Total Thickness | 3 mm |
| Chamfer | R3 mm |
| Cover surface hardness | ≥6 |
| Transmittance | >85% |
| Touch point | 10 points |
| Relative Humidity | 95% at 60℃, RH Non-condensing |
| Interface Type | USB,RS232,I2C |
| Warranty | 3 years |
Advantages of the product
- High Resolution: Supports HD display, ensuring crisp and detailed images that cater to users' visual demands.
- High Transmittance: The optical bonding technology increases screen transmittance, resulting in vivid colors and an enhanced visual experience.
- High Sensitivity: Boasts quick touch response and high precision, enabling smooth operation, whether it's single or multi-touch.
- High Stability: Utilizes top-notch materials and craftsmanship to ensure reliable stability and durability, suitable for various harsh environments.
Applications
Product Application Introduction
Education: Used in smart classrooms, interactive whiteboards, and other educational equipment, providing engaging interactive experiences that enhance teaching effectiveness.
Medical: Applied to medical equipment, self-service kiosks, and more, facilitating information exchange and operations between doctors and patients.
Retail: Ideal for self-service terminals, advertising machines, and other retail settings in malls, supermarkets, etc., enhancing the customer shopping experience.
Industrial Control: Used in industrial automation equipment, production line monitoring, and other areas for precise operations and monitoring.
Customization
- Size Customization: Although the standard size is 15.6 inches, we can provide customized sizes based on customer requirements.
- Interface Customization: Supports a variety of interface options, such as USB, HDMI, DisplayPort, to meet different device connection needs.
- Function Customization: Can add specialized features like gesture recognition, water and dirt resistance, tailored to specific application scenarios.
- Appearance Customization: Offers customization options for frame color, material, and overall design, ensuring the product aligns with the customer's brand image and aesthetic preferences.
The product with its exceptional parametric advantages and wide range of applicable industries, offers efficient and convenient touch solutions across various sectors. Its customizable options further cater to the unique needs of different customers. For more detailed information about this product, it is recommended to directly contact manufacturers or relevant suppliers.
Packing and Shipping
FAQ
Q: What chemicals are your HMI displays resistant to?
Q: What is the minimum order quantity for your HMI products?
Q: What is the delivery timeline for your industrial touch screens?
Q: Do you offer customized solutions for industrial touch screens?
Q: How Does Changing the Operating System Impact Capacitive Screens?
