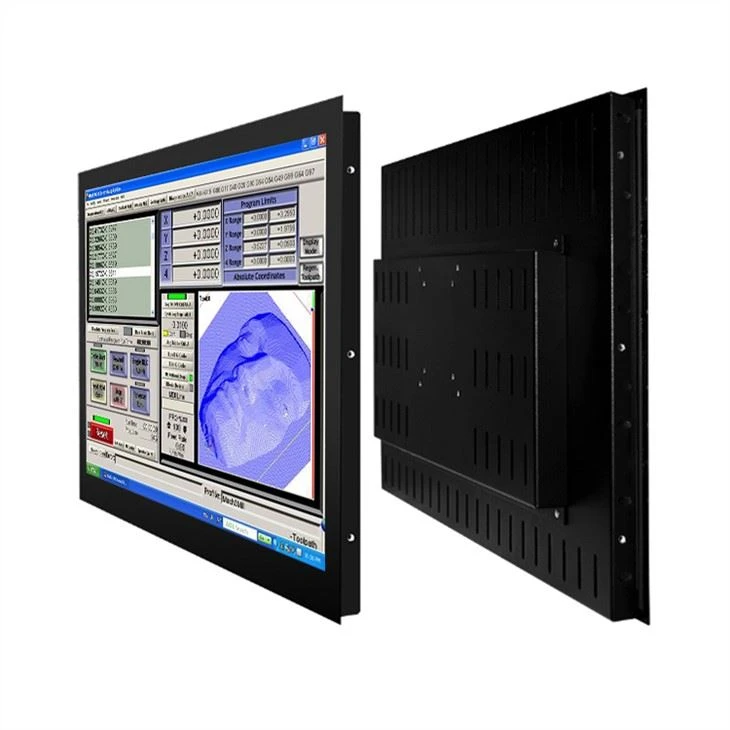

14 inch touch screen panel pc


1. Product Introduction of 14 inch touch screen panel pc

We supply 14 inch touch screen panel pc. We devoted ourselves to touch industry many years, covering most of Europe and the American market. We are expecting become your long team partner in China.


2. Product description of 14 inch touch screen panel pc

Part 1: Basic parameter

Item Name

14  inch touch screen panel pc

Touch Screen Type

10  Touch point Capacitive Touch Panel/Resistive/Saw optional

Part number

EG140

Brand

OEM

AspectRatio

16:9

Resolution

1024*768

Panel type

TFT-LCD

Glass

Tempered glass

Bezel thickness

3mm bezel, 10mm bezel optional

Color

Black, Silver, White colors optional

Power

80W

Transmittance

95±2%

Backlight Life

50,000 hrs

Active area(mm)

152.4*91.44mm/154.08*85.92mm

Operating System

Win7/ Win8/ Win8/ Win XP/ Android/  Linux/ Mac

Housing

Black Aluminum Alloy, Wire Drawing Oxidation  on surface

Input Power

External Power,DC12V-2.5A

Installation Method

Easy Installation,Wall Mount  supported

Touch Method

Finger

Touch Accuracy

≥5mm

Touch Resolution

32767×32767

Touch Duration

100000 Hours

Touch Response Time

5ms - 12ms

Warranty

1 year free warranty,Paid  warranty for 3 years.

Operation Environment

Operating temperature:-10°C~60°C

Storage Temperature: -25°C ~85°C
Operating Humidity :10% ~90% RH, Relative  Humidity
Storage Humidity: 10% ~ 90% RH, Relative  Humidity


Part 2: LED Display

Display Type

LED Display

Dot Pitch

0.264 mm*0.264 mm

Bit Depth

8 Bit,16.7 Mega color

Brightness

250cd/m2

Display color

16.7M(8-bit)

Visual Angle(CR>10)

Full View ( R/L 170(Min.),U/D 160 (Min.))

Display Mode

Transport  Mode

Surface Treatment

Hard Coating

Contract

800:1


Part 3: Technical specifications

Main board (CPU)

Intel industrial motherboard

Processor

Intel Celeron Dual-Core 1037U 1.8GHz

Memory

2G DDR3(Maximum support to 8G)

Hard disk

SSD 32G/64G/128G/256G, 500G HDDoptional

Graphic

Intel  HD Graphics

Power Supply

external  power supply 12V-5A

Interface

1*  12V DC JACK input,1* 2pin 12V DC Power input interface,

1*  HDMI Display interface,1* VGA Display interface,4* USB interface,2* RJ-45  network interface,1* Line out interface,1* MIC interface,4* RS232 serial port,1*Built-in  Wireless LAN Optional

Accessories

Power  Adatper/VGA cable/USB cable

IP

Flat、Surface  IP65/IP66

Certificates

CE/FCC/ROHS/ISO

Installation method

VESA, embedded, Wall mount, desktop optional


3. Product feature and application of 14 inch touch screen panel pc

Our Advantages

1) We are the one of the first company in China mainland started the research and production of large size PCAP, and provide full product line of cover glass, PCAP, full lamination, display+touch panel air bonding, touch monitor from 7’’-65’’, we can offer both standard and customized products, Without MOQ for standard model and very low MOQ for customized models.

2) We are aiming to be the most professional and experienced Touch Solution provider for different applications. Our size is currently covering from 7’’ to 65’’, With various function features to apply to different applications.

3) We are a strategic partner of EETI with 7 years cooperation, we have the capacity of FAE tooling by ourselves, they usually provide timley support for end customer.


Why Choose Ever Glory?

Ø 13000 Square meter factory,main for CTP and TFT ,larger production capacity ensure the fastest delivery.

Ø High quality Control with CE,ROHS,ISO and so on approved.

Ø More than 10 years of industry experience and involved main markets all over the world

Ø Our mission is to help our customers achieve success, then fulfill our both dreams

ØWe have a very strongquality controlSamples are always available for checking quality and can be dispatched to you very quickly.


Product feature



Production details

Our Touch Monitor consists of Capacitive touch panel+ LCD module bonding+ housing(including operating system).



4. Product qualification of 14 inch touch screen panel pc

There are 9 patents and ROHS, ISO, CE & FCC certificates has been obtained so far.


5. Shipping, Packing and Payment

1) Shipping method: DHL, UPS , FedEx ,TNT, EMS...

2) Innerpackaging:packingwithbubblebagsandfillingwithfoam plasticmaterials;

Outerpackaging:packingwithserialsizeof carton or woodenbox.

Generally,wepackallofproductscompliedwiththestandardpackagingprocessofEverGlorycompany.Wealsocanfollowourcustomers detailedrequirements.

3) We acceptpayment way: Paypal, Western Union, T/T(Bank Transfer)

We accept payment term: 30% deposit upon order confirmation , 70% before shipment.

6. FAQ of 14 inch touch screen panel pc

Q1: Are you a manufacturer or trading company?

A: We are a OEM/ODM factory, and we have built up our company since 2007.


Q2: Where is your factory located?
A:Our factory address is: Rm04,13/F, DaHong Tech Park, XinYu Rd, XingQiao Village, ShaJing Town, Bao’an District , ShenZhen City, GuangDong Province, China.

All our clients, from home or abroad, are warmly welcome to visit us!


Q3: How can i get to your factory?

A: Our factory is near metro station, we can pick you up if necessary.


Q4: What is your MOQ? Can I get some samples?
A: Sample order is welcome. Price would be negotiated based on bigger quantity.

For standard product, we have NO MOQ request, a single piece is also a good order for us .

For custom product, normally the MOQ is 50pcs, it depends on the quantity of your order.


Q5: How does your factory do regarding quality control?
A: Quality is our orientation. Our supervision department control the quality from raw material to finished product step by step carefully, make sure everything perfect before shipment.


Q6: What is your shipping method?

A:DHL, UPS , FedEx ,TNT, EMS...



7. Latest news


8. Company introduction


9. Production workshop

Production process flow:

Bonding(put coverglassonthetouchsensor with OCA glue)→Hot pressing→Defoaming, UV solidifying, Cleaning→Film coating→Assembling→Packing
