Product Detail
Standard

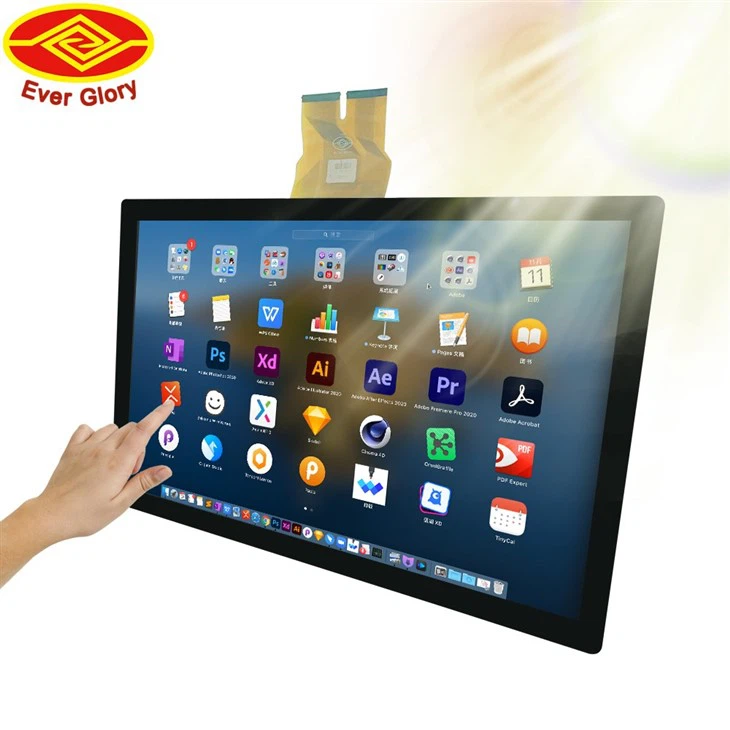

23.8 inch OCA Bonding display
Certification
FCC,RoHS,CE
Price
TBA
Product introduce
OCA Bonding Display is a type of display device that uses Optically Clear Adhesive (OCA) for bonding.
- OCA Bonding Process: Uses an optically transparent adhesive to laminate the display panel with the touch panel or protective glass.
- Ultra-thin Design: The overall thickness can be as slim as 5mm or even thinner, achieving an ultra-lightweight and compact design.
- High Optical Transmittance: The high optical transparency of OCA can maximize the brightness and color performance of the display panel.
- High Strength and Scratch Resistance: The OCA bonding layer can enhance the impact resistance and wear resistance of the entire device.
- Dust and Water Resistance: Optional IP-rated protection functions make it suitable for use in harsh environments.
- Excellent Touch Experience: The OCA bonding can enable more responsive and sensitive touch operation.
product parameters
| Touch Panel P/N | EG-23.8-A-1609V1-QTCTP-A |
| Display P/N | G238HAN01.1 |
| Screen Diagonal | 23.8/16:9 |
| Cover Outline Dimension | 567.44*336.86 mm |
| Touch Panel View Area | 527.44*296.86 mm |
| Touch Panel Active Area | 528.44*297.86 mm |
| Touch Panel Thickness | 2.9 mm |
| Display Outline Dimension | 543*317.4 mm |
| Cover surface hardness | ≥7 H |
| Support Touch Point | 10 points Typ. |
| Impact resistanc | ≥IK07 |
| Transmittance | >85% |
| Pixels H×V | 1920(x3) x 108 |
| Luminance, white | 600 Typ. |
| Working conditions | 0°C~50°C |
| Torage conditions | -10°C~60°C |
| Average lifespan | 50000h |
Advantages of the product
- Ultra-thin and Lightweight Design: The OCA bonding process enables an ultra-slim form factor, greatly saving space and weight.
- High Optical Performance: The high transmittance of OCA can maximize the brightness and color reproduction of the display.
- Excellent Reliability: The strong OCA bonding layer enhances the impact resistance and scratch resistance of the entire device.
- Outstanding Touch Experience: OCA bonding can achieve more sensitive and responsive touch operation, improving the user experience.
- Good Environmental Adaptability: Optional IP-rated protection makes it suitable for use in harsh environments.
Applications
Product Application Introduction
Industrial Display Terminals: Used in industrial control, medical equipment, transportation systems and other industrial applications.
Digital Signage and Kiosks: Commercial displays, outdoor advertising, and other digital display devices that require high appearance and performance.
Automotive Infotainment Systems: In-vehicle display consoles adopt the OCA Bonding structure design.
Customization
We can personalize products according to customer requirements, including size, shape, coatings, and more. We can quickly respond to customer demands, rapidly complete drawings and sample customization
Packing and Shipping
Packaging and Shipping for 23.8 inch OCA Bonding display
Packaging:
The products will be carefully packaged in a sturdy cardboard box to ensure its safe transportation.
All necessary protective materials, such as foam inserts and bubble wrap, will be used to prevent any damage during shipping.
The box will be sealed securely with strong packaging tape to avoid any openings during transit.
Each monitor will be labeled with its model number and specifications for easy identification.
Inside the box, there will be a user manual and all necessary cables included to set up the display module.
Shipping:
We offer worldwide shipping for our products.
The monitor will be shipped via a reputable courier service, such as DHL or FedEx, to ensure timely and reliable delivery.
Shipping costs will be calculated based on the destination and weight of the package.
Customers will receive a tracking number once the package has been shipped, so they can track the status of their delivery.
We strive to ship all orders within 2 business days of receiving the payment.
In case of any delays or issues with shipping, our customer service team will promptly communicate with the customer to resolve the problem.
With our careful packaging and efficient shipping methods, you can trust that your LCD touch monitor will arrive in perfect condition and on time.
FAQ
Q: What is the nature of your business in the HMI technology sector?
Q: What is the minimum order quantity for your HMI products?
Q: What is the warranty duration for your interactive screens?
Q: Do you offer customized solutions for industrial touch screens?
Q: Which operating systems are compatible with your HMI devices?
